Exhaust Plans - PDF

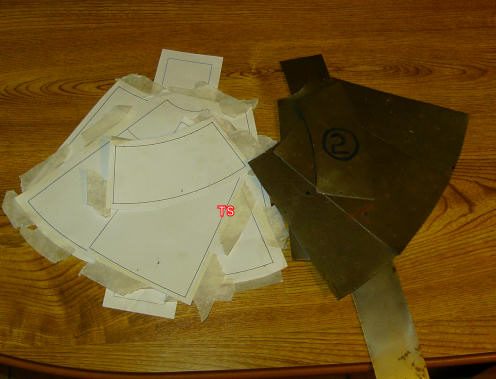

Improve the performance of your two-stroke engine now with these pre designed exhaust plans. Simply overlay the supplied PDF templates on mild steel sheet and cut the metal section using tin snips. Now roll the cones and weld your new "works" pipe.

These designs will work on any scooter, motorcycle, quad and motocross bike. Simply select the capacity that is nearest in size to your engine. Notice that for each capacity, there is a dropdown box that enables you to choose an exhaust specifically designed for the same number of exhaust ports as your engine.

Exhaust Plans - 50cc

Pre designed exhaust plans in PDF format.

Exhaust Port Details

Single - 25.5 mm max Multi - 25.5 mm max Multi - 28 mm max

Please note that it may take up to 24hrs after payment to receive your exhaust plans PDF via email.

Exhaust Plans - 65cc

Pre designed exhaust plans in PDF format.

Exhaust Port Details

Single - 25.5 mm max Multi - 25.5 mm max Multi - 28 mm max

Please note that it may take up to 24hrs after payment to receive your exhaust plans PDF via email.

Exhaust Plans - 85cc

Pre designed exhaust plans in PDF format.

Exhaust Port Details

Single - 26 mm max Multi - 26 mm max Multi - 31 mm max

Please note that it may take up to 24hrs after payment to receive your exhaust plans PDF via email.
